Type AG - 2 Tuyaux – Série Standard

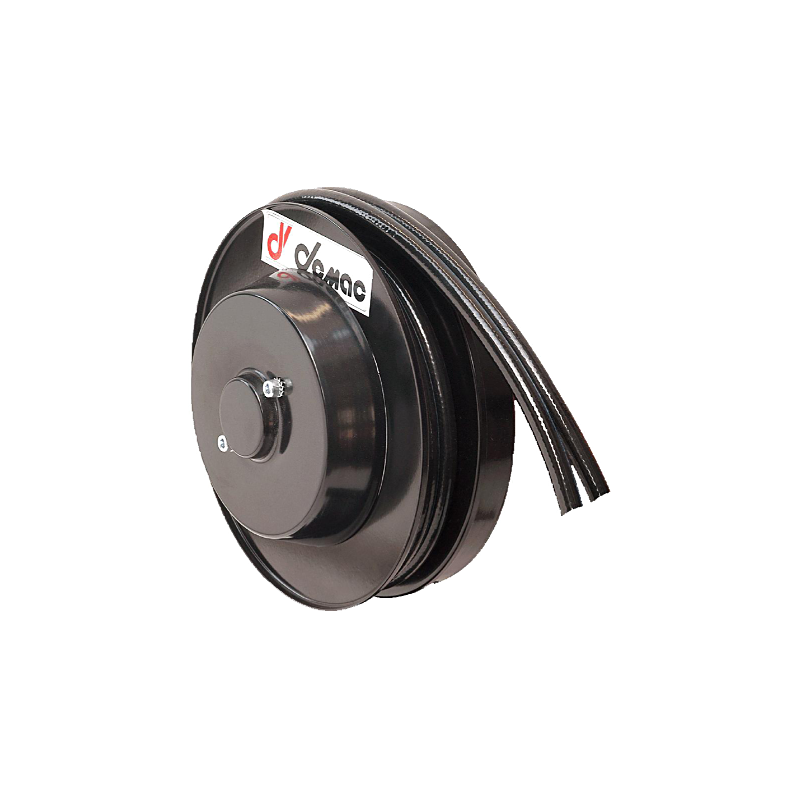

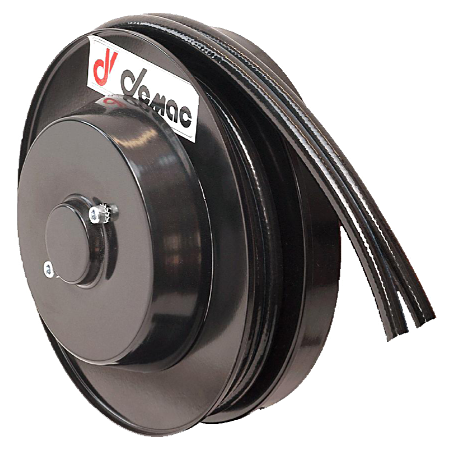

Enrouleurs Hydraulique type AG :
Double tuyaux
- Pour tuyaux doubles avec soudure thermoplastique
- Disponible en version Droite ou Gauche
- Fixation par bride en L
- Auto-enroulement permanent par ressort (tension constante)
PRESSION DE TRAVAIL MAX. 300bar
DEBIT MAXIMUM L/MIN 40
Convient notamment pour les chariots élévateurs, grues, bras télescopiques, etc...
Debit maximum: 40 l/min
Pression de travail: standard 300 bar / en option 400 bar
Vitesse maximum du tuyau: 30 m/min
Plage de Température: -20/+80°C en option: -40/+80°C

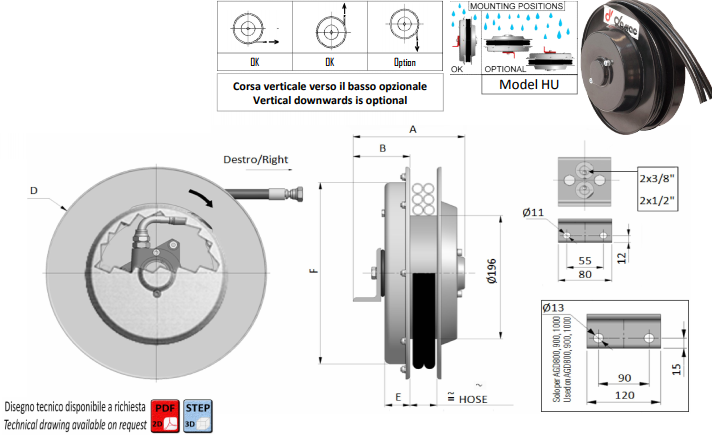

AGD400=modèle droit/right model AGS400=modèle gauche/left model
|
modèle droit
Right model |
A |
B |
D |
E |
F |
Sans tuyau Without hose |
Tuyau/Hose |
Avec Tuyau - with hose |
|||||||
|
Ø |
Long. totale Total length |
Long. utile Usable length |
R7 |
R8 |
B1 |
B2 |
T2 |
||||||||
|
mm |
kg |
|
XX=R7 |
XX=R8 |
XX=B1 |
XX=B2 |
XX=T2 |
||||||||
|
m |
m |
|
|
|
|
|
|||||||||
|
AGD296.06.XX |
161 |
75 |
295 |
35 |
291 |
13 |
|
1/4" |
3,0 |
2,7 |
|
|
|
|
|
|
AGD296.08.XX |
5/16" |
2,3 |
2,0 |
|
|
|
|
|
|||||||
|
AGD296.10.XX |
3/8" |
2,3 |
2,0 |
|
|
|
|
|
|||||||
|
AGD296.12.XX |
|
1/2" |
1,5 |
1,2 |
|
|
|
|
|
||||||
|
AGD321.06.XX |
161 |
82 |
325 |
37 |
272 |
13,5 |
|
1/4" |
4,0 |
3,7 |
|
|
|
|
|
|
AGD321.08.XX |
5/16" |
3,2 |
2,9 |
|
|
|
|
|
|||||||
|
AGD321.10.XX |
3/8" |
3,3 |
3,0 |
|
|
|
|
|
|||||||
|
AGD321.12.XX |
|
1/2" |
2,5 |
2,2 |
|
|
|
|
|
||||||
|
AGD341.06.XX |
161 |
82 |
340 |
37 |
272 |
14 |
|
1/4" |
5,0 |
4,7 |
|
|
|
|
|
|
AGD341.08.XX |
5/16" |
4,2 |
3,9 |
|
|
|
|
|
|||||||
|
AGD341.10.XX |
3/8" |
4,0 |
3,7 |
|
|
|
|
|
|||||||
|
AGD341.12.XX |
|
1/2" |
2,5 |
2,2 |
|
|
|
|
|
||||||
|
AGD370.06.XX |
161 |
82 |
370 |
37 |
272 |
14,5 |
|
1/4" |
6,0 |
5,7 |
|
|
|
|
|
|
AGD370.08.XX |
5/16" |
5,3 |
5,0 |
|
|
|
|
|
|||||||
|
AGD370.10.XX |
3/8" |
4,5 |
4,2 |
|
|
|
|
|
|||||||
|
AGD370.12.XX |
|
1/2" |
3,5 |
3,2 |
|
|
|
|
|
||||||
|
AGD400.06.XX |
161 |
82 |
400 |
47 |
322 |
15 |
|
1/4" |
7,3 |
7,0 |
|
|
|
|
|
|
AGD400.08.XX |
5/16" |
6,5 |
6,2 |
|
|
|
|
|
|||||||
|
AGD400.10.XX |
3/8" |
5,6 |
5,3 |
|
|
|
|
|
|||||||
|
AGD400.12.XX |
|
1/2" |
4,5 |
4,2 |
|
|
|
|
|
||||||
|
AGD420.06.XX |
161 |
82 |
420 |
47 |
322 |
19 |
|
1/4" |
8,6 |
8,1 |
|
|
|
|
|
|
AGD420.08.XX |
5/16" |
8,0 |
7,5 |
|
|
|
|
|
|||||||
|
AGD420.10.XX |
3/8" |
6,7 |
6,2 |
|
|
|
|
|
|||||||
|
AGD420.12.XX |
|
1/2" |
4,7 |
4,2 |
|
|
|
|
|
||||||
|
AGD470.06.XX |
161 |
82 |
478 |
47 |
322 |
21 |
|
1/4" |
11,5 |
11,0 |
|
|
|
|
|
|
AGD470.08.XX |
5/16" |
10,0 |
9,5 |
|
|
|
|
|
|||||||
|
AGD470.10.XX |
3/8" |
9,5 |
9,0 |
|
|
|
|
|
|||||||
|
AGD470.12.XX |
|
1/2" |
7,5 |
7,0 |
|
|
|
|
|
||||||
|
modèle droit
Right model |
A |
B |
D |
E |
F |
Sans tuyau Without hose |
Tuyau/Hose |
Avec Tuyau - with hose |
|||||||
|
Ø |
Long. totale Total length |
Long. utile Usable length |
R7 |
R8 |
B1 |
B2 |
T2 |
||||||||
|
mm |
kg |
|
XX=R7 |
XX=R8 |
XX=B1 |
XX=B2 |
XX=T2 |
||||||||
|
m |
m |
|
|
|
|
|
|||||||||
|
AGD520.06.XX |
171 |
92 |
520 |
47 |
422 |
23 |
|
1/4" |
14,5 |
14,0 |
|
|
|
|
|
|
AGD520.08.XX |
5/16" |
12,5 |
12,0 |
|
|
|
|
|
|||||||
|
AGD520.10.XX |
|
3/8" |
11,2 |
10,7 |
|
|
|
|
|
||||||
|
AGD520.12.XX |
|
1/2" |
9,0 |
8,5 |
|
|
|
|
|
||||||
|
AGD570.06.XX |
171 |
92 |
570 |
47 |
422 |
28 |
|
1/4" |
17,5 |
17,0 |
NON RECOMMANDÉ‐ NOT RECOMMENDED
|
|
|
|
|
|
AGD570.08.XX |
5/16" |
15,5 |
15,0 |
|
|
|
|
||||||||
|
AGD570.10.XX |
|
3/8" |
13,5 |
13,0 |
|
|
|
|
|||||||
|
AGD570.12.XX |
|
1/2" |
10,7 |
10,2 |
|
|
|
|
|||||||
|
AGD600.06.XX |
171 |
92 |
620 |
47 |
422 |
34 |
|
1/4" |
21,0 |
20,5 |
|
|
|
|
|
|
AGD600.08.XX |
5/16" |
17,0 |
16,5 |
|
|
|
|
||||||||
|
AGD600.10.XX |
|
3/8" |
16,0 |
15,5 |
|
|
|
|
|||||||
|
AGD600.12.XX |
|
1/2" |
12,5 |
12,0 |
|
|
|
|
|||||||
|
AGD650.06.XX |
181 |
102 |
650 |
57 |
422 |
37 |
|
1/4" |
22,5 |
22,0 |
|
|
|
|
|
|
AGD650.08.XX |
5/16" |
19,5 |
19,0 |
|
|
|
|
||||||||
|
AGD650.10.XX |
3/8" |
17,5 |
17,0 |
|
|
|
|
||||||||
|
AGD650.12.XX |
1/2" |
14,5 |
14,0 |
|
|
|
|
||||||||
|
AGD700.06.XX |
181 |
102 |
720 |
57 |
532 |
40 |
|
1/4" |
27,0 |
26,5 |
|
|
|
|
|
|
AGD700.08.XX |
5/16" |
22,0 |
21,5 |
|
|
|
|
||||||||
|
AGD700.10.XX |
|
3/8" |
20,0 |
19,5 |
|
|
|
|
|||||||
|
AGD700.12.XX |
|
1/2" |
16,0 |
15,5 |
|
|
|
|
|||||||
|
AGD800.08.XX |
226 |
122 |
820 |
67 |
532 |
47 |
|
5/16" |
30,0 |
29,0 |
|
|
|
|
|
|
AGD800.10.XX |
|
3/8" |
26,0 |
25,0 |
|
|
|
|
|||||||
|
AGD800.12.XX |
|
1/2" |
21,0 |
20,0 |
|
|
|
|
|||||||
|
AGD900.08.XX |
226 |
122 |
920 |
67 |
532 |
60 |
|
5/16" |
38,0 |
37,0 |
|
|
|
|
|
|
AGD900.10.XX |
3/8" |
34,0 |
33,0 |
|
|
|
|
||||||||
|
AGD900.12.XX |
1/2" |
28,0 |
27,0 |
|
|
|
|
||||||||
|
AGD1000.10.XX |
Seulement avec tuyau horizontal Only with horizontal hose |
75 |
|
3/8" |
36,0 |
35,0 |
|
|
|
|
|||||
|
AGD1000.12.XX |
1/2" |
35,0 |
34,0 |
|
|
|
|
||||||||
